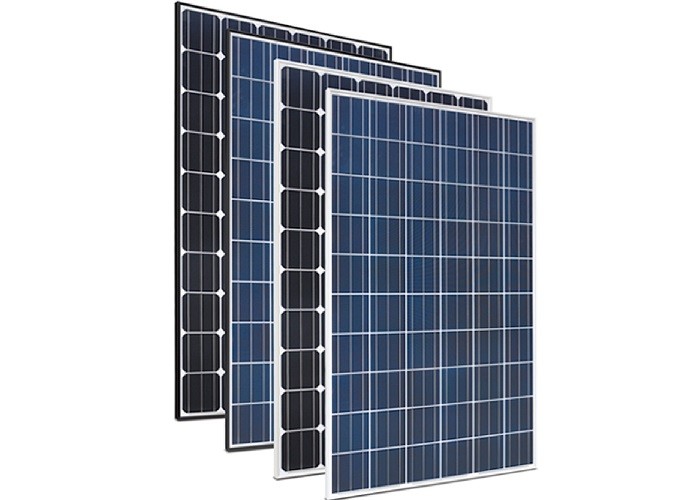

6*12 Cell Array Polycrystalline Silicon Solar Panels Low Iron Tempered Glass

Ask Lasest Price
Brand Name :	OLLIN PV
Model Number :	OL-72P-315
Certification :	CE ROSH ISO
Price :	Negotiable
Supply Ability :	1500UNITS PER WEEK
Delivery Time :	20DAYS

Add to Cart

Product Details
Company Profile

6*12 Cell Array Polycrystalline Silicon Solar Panels Low Iron Tempered Glass

315Watt Polycrystalline Solar Panel Solar Cell charged 24v battery water pumping off-grid system

Products information

1. High module conversion efficiency,through superior manufacturing technology

2. Guaranteed power output tolerance from -3 to +3%

3. Excellent performance under low-light irradiance environment

4. Anodized aluminum is mainly for improving corrosion resistance

5. Highly transparent,low iron tempered glass

6. Entire module certified to withstand high wind loads(2400Pa) and snow loads(5400Pa)

Detailed Product Description

Type	M325	M320	M315	M310	305	M300	M295	M290	M285	M280
Wattage(W)	325	320	315	310	305	300	295	290	285	280
Open Circuit Voltage(V)	45.30	45.20	45.10	45	44.9	44.8	44.6	44.5	44.4	44.2
Short Circuit Current(I)	8.87	8.79	8.71	8.97	8.87	8.8	8.73	8.67	8.6	8.49
Maximum Power Voltage(V)	37.00	36.80	36.60	36.4	36.2	36.1	35.9	35.8	35.7	35.5
Maximum Power Current(I)	8.78	8.70	8.61	8.52	8.43	8.32	8.22	8.11	7.99	7.89
Cell Efficiency	18.90%	18.60%	18.31%	18.02%	17.73%	17.44%	17.15%	16.86%	16.57%	16.28%
Module Efficiency	16.63%	16.48%	16.23%	15.97%	15.71%	15.45%	15.20%	14.94%	14.68%	14.42%
Maximum System Voltage	DC1000V
Temperature Coefficient of Voc	-0.27%/°C
Temperature Coefficient of Isc	+0.045%/°C
Temperaturecoefficient of Pmax	-0.408%/°C
Maximum Series Fuse Rating	15A
Number of Cells	72(612) Mono Crystalline silicon, 156156mm(6 inches)
Junction Box	Ip67 rated/with 6 bypass diodes
Cable	4.0mm² (0.006inches²,symmetrical lengths(-)1100mm(43.30inches)and(+)1100mm(43.30inches))
Tempered Glass	3.2mm(0.13inches)tempered glass
Cell Encapsulation	EVA(Ethylene-vinyl-Acetate)
Back Sheet	composite film
Frame	Anodized aluminum alloy
Dimension	195799250mm(77.0539.061.97inches)
Maximum Surface Load Capacity	5400pa
Hail	maximun diameter of 25mm with impact speed of 23m-s-1
Temperature Range	-40°C to + 85°C
Weight	23.0kg(50.7bs)

6*12 Cell Array Polycrystalline Silicon Solar Panels Low Iron Tempered Glass

Payment Terms	T/T	EXW	30% T/T in advance, paid the balance before
		FOB
		CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 30,000 usd, we can accept L/C at sight
	Trade Assurance	100% product quality protection 100% on-time shipment protection 100% payment protection for your covered amount
	Western Union	Amount lower than 1000usd
	Paypal
Delivery time	7~15days after receiving payment for one container
