    140w Polycrystalline Solar Panel Building - Integrated Power Generation Facilities

    Ask Lasest Price
    Brand Name : OLLIN PV
    Model Number : OEM
    Certification : CE ROSH ISO
    Price : Negotiable
    Supply Ability : 1500UNITS PER WEEK
    Delivery Time : 20DAYS
    • Product Details
    • Company Profile

    140w Polycrystalline Solar Panel Building - Integrated Power Generation Facilities

    140w Polycrystalline Solar Panel charge for off gtid street light system battery solar cells


    Product field:


    1. Gird-connected power generation system


    2. Off-grid power hotel heater generation system


    3. Building-integrated power generation facilities



    Products information


    Module TypeOLPV130WOLPV140WOLPV150WOLPV160WOLPV165W
    Maximum power130 W140 W150 W160 W165 W
    Max power voltage17.50 V17.70 V17.90 V18.10 V18.20 V
    Max power current7.43 A7.92 A8.38 A8.84 A9.06 A
    Open circuit voltage21.50 V21.70 V21.90 V22.10 V22.30 V
    Short circuit current7.96 A8.49 A9.01 A9.53 A9.74 A
    Module Efficiency13.13%14.14%15.15%16.16%16.67%
    Power Tolerance-0~+5W-0~+5W-0~+5W-0~+5W-0~+5W
    Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5
    Nominal Operating Cell Temperatur45 ± 2℃
    Temperature coefficients of Isc+0.049% /℃
    Temperature coefficients of Voc-0.340% /℃
    Temperature coefficients of Pmax-0.430% /℃

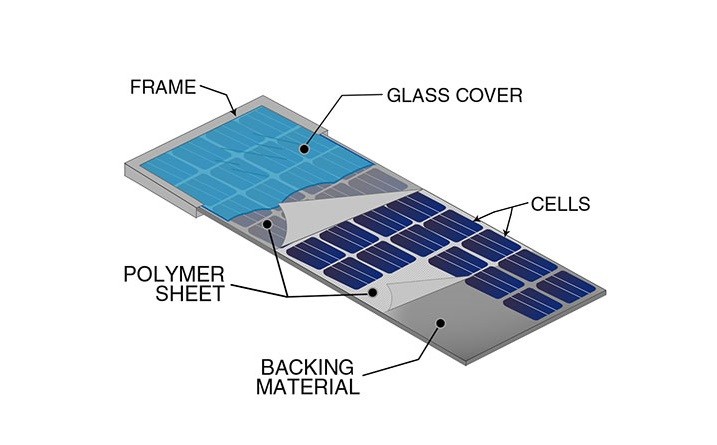

    Solar CellPoly solar cells 156x156 mm
    Front Cover3.2 mm thick, tempered glass
    Back CoverTPT (Tedlar-PET-Tedlar)
    EncapsulantEVA (ethylene vinyl acetate)
    FrameDouble-layer anodized aluminium alloy
    Junction BoxIP65 rated
    Maximum System VoltageDC1000V (IEC)
    Maximum Series Fuse15 A
    Operating Temperature-40℃~+85℃
    Storage Temperature-40℃~+85℃
    Max. Wind Load / Max. Snow Load2400Pa / 5400Pa
    Application ClassClass A
    Packing configurationCarton.Customers packing requirement is acceptable.

    140w Polycrystalline Solar Panel Building - Integrated Power Generation Facilities

    Product features:


    You own the sun. Well, not exactly, but you do have the right to its power. Why not put it good use? With solar technology, you can harness the sun's energy and turn your rooftop into a power plant.


    1. With advanced materials and equipment, our modules are designed and manufactured
    in consistency with the IEC 61215:1993 standards which can guarantee the excellent electrical
    performance and the product life of 25 years.High-transmittance low-iron tempered glass, anti-aging EVA, excellent weathering resistance TPT,

    2. High quality anodized aluminum frame is suitable for strong wind resistance and mountain terrain., beautiful appearance

    3. Wind resistance, pressure resistance, high conversion efficiency


    SOLAR PV SYSTEM


    Solar PV system includes different components that should be selected according to your system type, site location and applications. The major components for solsr PV system are solar charge controller, inverter, battery bank, auxiliary energy sources and loads (appliances).

    • PV module - converts sunlight into DC electricity.
    • Solar charge controller - regulates the voltage and current coming from the PV panels going to battery and prevents battery overcharging and prolongs the battery life.
    • Inverter - converts DC output of PV panels or wind turbine into a clean AC current for AC appliances or fed back into grid line.Battery - stores energy for supplying to electrical appliances when there is a demand.Load - is electrical appliances that connected to solar PV system such as lights, radio, TV, computer, refrigerator, etc.
    • Auxiliary energy sources - is diesel generator or other renewable energy sources.
