    Roof Mounted Colorful Polycrystalline Solar Panel Off - Grid Power Generation System

    Ask Lasest Price
    Brand Name : OLLIN PV
    Model Number : OL-72P-300
    Certification : CE ROSH ISO
    Price : Negotiable
    Supply Ability : 1500UNITS PER WEEK
    Delivery Time : 20DAYS
    • Product Details
    • Company Profile

    Roof Mounted Colorful Polycrystalline Solar Panel Off - Grid Power Generation System

    Off-grid power generation system colorful Polycrystalline Solar Panel 300watt For roof mounted

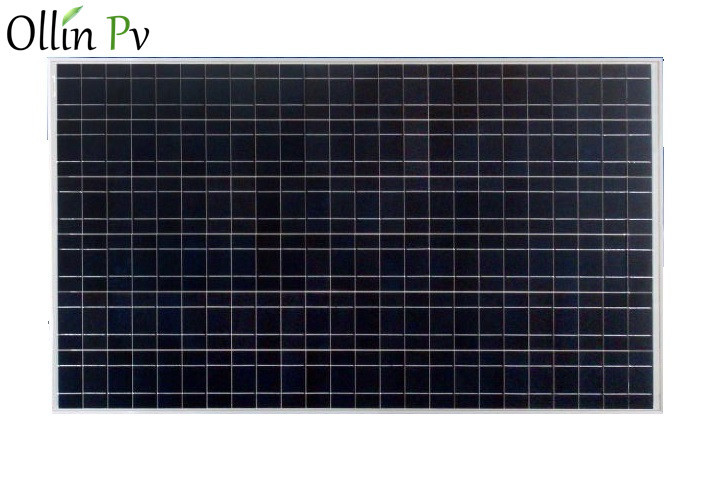

    300Wp Poly Crystalline Solar Panel


    Product features:

    1. High-transmittance low-iron tempered glass, anti-aging EVA, excellent weathering resistance TPT

    2. Anodized quality aluminum frame, beautiful appearance

    3. Wind resistance, pressure resistance, high conversion efficiency

    Product field:

    1. ON - Gird power generation system

    2. Off - grid power generation system

    3. Building-integrated power generation facilities

    Specifications:

    ELECTRICAL PERFORMANCE
    Module typePLM-310P-72
    Power output290295300305310
    Power output tolerances0-3
    Voltage at Pmax37.1437.5838.0838.3238.47
    Current at Pmax7.817.857.887.968.06
    Open-circuit voltage44.8444.9245.1045.3045.47
    Short-circuit current8.388.478.498.528.60
    OPERATING CONDITIONS
    Max.system voltage1000V
    Limiting reverse current15A
    Operating temperature range-40℃ to 85℃
    Max.static load front5400Pa
    Max.static load back2400Pa
    Max.hailstone impact (diameter/velocity)25mm/23m/s
    MECHANICAL CHARACTERISTICS
    Front cover(material/thickness)Low-iron tempered glass / 3.2mm
    Backsheet(color)white
    Cell(quantity/material/dimensions)72 / monocrystalline silicon / 156*156mm
    Frame(material/color)Anodized aluminum alloy / silver
    Junction box(protection degree)>= IP65
    Cable&Plug connectors900mm / 4mm² &MC4 compatitible / IP67
    Module Dimensions (L /W /H )1956mm*992mm*40mm
    Module Weight21.6kg

    Roof Mounted Colorful Polycrystalline Solar Panel Off - Grid Power Generation System

    WHY CHOOSE US?

    1. Excellent efficiency, Easy Installation & Maintenance


    2. Outstanding performance in Low-Light


    3. High transparent, Low-Iron, Tempered Glass


    4. Ability to withstand High Wind-Pressure and Snow-Load


    5. Advanced module sealing technology to eliminate leakage and frame deformation


    6. Ability to meet customized customer's specific requirements



    Company Profile:

    We are a professional manufacturer specialized in Solar Panels with more than 8 years of

    experience. Our main products include: Mono and Poly Solar Panel, Solar power system, Solar

    charger controller, Inverters, Solar LED lights, and so on.

    What we can provide: High quality and very competitive price, fast delivery and best service!

    A trustable and reliable supplier for your business. We have already exported our products around

    the world includes Russian, Middle East, South American, Southeast Asia and so on.

    For any details, please don't hesitate to contact me any time!
