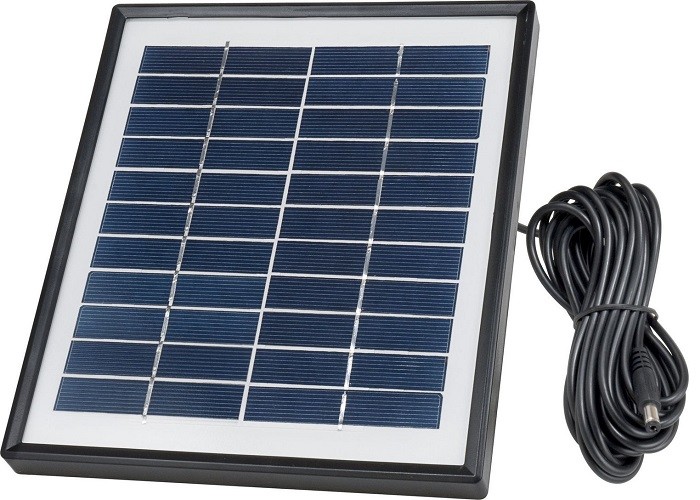

    Eco - Friendly 3 Watt Solar Panel For Solar Street Light / Solar Flood Light

    Ask Lasest Price
    Brand Name : OLLIN PV
    Model Number : OEM
    Certification : CE
    Price : negotiation
    Supply Ability : 80000 Piece/Pieces per Week
    Delivery Time : 20days
    • Product Details
    • Company Profile

    Eco - Friendly 3 Watt Solar Panel For Solar Street Light / Solar Flood Light

    Outdoor Security Floodlight Solar Flood Light 60 LED Solar Panel Street Lights for Lawn Garden

    Product description


    solar panels 3w 9v Feature:


    1. Bypass diode minimizes the power drop by shade.

    2. The conversion efficiency of solar panel is about 18%.

    3. Adapt the severest enviromental conditions

    4. Waterproof. Perfect for grid applications and off-grid applications.


    Features

    1) High module conversion efficiency

    (up to 16%), through superior cell technology and

    leading manufacturing capability


    2) Positive tolerance

    Guaranteed tolerance from ±3% ensures

    power output reliability


    3) Excellent weak light performance

    Excellent performance under low light environments

    (mornings, evenings, and cloudy days)


    4) Withstand high wind and snow loads

    Entire module certified to withstand high wind loads

    (2400 Pascal) and snow loads (5400 Pascal)


    Applications

    1) On-grid /Off-grid system


    2) Remote telecommunication power supply


    3) Rural electrification


    4) Water pumping systems


    5) Solar farms


    ITEM NO3W/9V
    MONO or POLYpoly
    Maximum power (Wp)3wp
    Maximum power voltage (V)9
    Maximum power current (A)0.33
    Open circuit voltage (V)10.8
    Short circuit current (A)0.36
    Number of cells (Pcs)18
    Size of module (mm)210*195*18
    Brand Name of Solar CellsHT
    Maximum system voltage (V)715
    Temperature coefficients of Isc (%)0.065+/-0.015%/°C
    Temperature coefficients of Voc (%)-(2.23+/-0.1)mv/ °C
    Temperature coefficients of Pm (%)-(0.5+-0.05)/ °C
    Temperature coefficients of Im (%)+0.1/ °C
    Temperature coefficients of Vm (%)-0.38/ °C
    Temperature Range-40°C~+85°C
    Tolerance Wattage (e.g. +/-5%)+/-5%
    Surface Maximum Load Capacity60m/s(200kg/sq.m)
    Allowable Hail Loadsteel ball fall down from 1m height
    Weight per piece (kg)1.1
    Length of Cables (mm)
    Cell Efficiency (%)more than13%
    Module Efficiency (%)more than 8%
    Output tolerance (%)+/-5%
    Frame (Material, Corners, etc.)Aluminum
    Standard Test ConditionsAM1.5 100mw/cm2 25°C
    Warranty2 years product warranty and 25years 80% of power
    FF (%)75%
    Packing10PCS/ CTN
    Unit Price

    Why choose us:


    Since 2002, with over 15 years lighting products exporter experience.


    Rich experience in OEM and ODM order, help you realized your own design.


    Lead time: 25 business days.


    Small order is welcome.


    Quick response, 24*7 service.


    Well-trained and experienced staffs to answer all your inquiries in fluent English.
