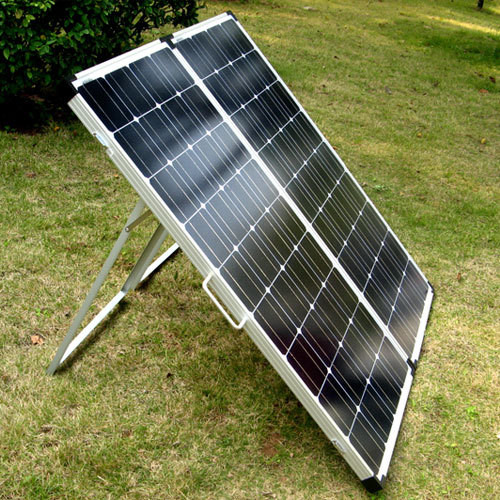

Foldable 100Watt 12V Folding solar panel Monocrystalline Solar
Suitcase for hiking camping and military use
Detailed Product Description
1. Nominal Operating Cell Temp -40 ℃ TO+85℃
2. Widely used for camping ,travel,adventure and other fields of
outdoors and charge for DC 12v/24v/48v battery.Included
controller,cable,alligator clip,connectors,protection conners and
strong supporting leg single bag.
3. Providing special design.
4. Module efficiency : 16%
5.Warranty : 12 years/90%,25 years/80%, guaranteed 10years material
and workmanship
6. Tolerance : Guatanteed tolerance,different model with diffetent
tolerance,and delivers higher outputs reliably
7. Excellent performance under low light conditions
8. Load test: module certified to wind and snow loads
9.Anti-reflective,hydrophobic layer with light absorption and
minimal surface dust
Parameters Table
| Specifcation |
| Related power | 100W |
| Vop | 17.9V |
| Working current (Iop) | 5.59A |
| Output Tolerance | ±3% |
| Temperate coefficient of Isc | (010+/- 0.01 )%/ ℃ |
| Temperate coefficient of Voc | - (0.38 +/-0.01 )%/ ℃ |
| Temperate coefficient of power Voc | -0.47%/℃ |
| Temperature range | -40℃to +80℃ |
| Frame and leg | Heavy duty aluminum |
| SLA Battery Voltage | 12V |
| Dimensions (L x W x H)mm | 690*510*73mm(27.3*20.16*2.9in) |
| Weight (kgs) | 12.9kgs(28.4lbs) |
| Type | Folded size | Weight | Specification |
| Max-power | Volatage at Pmax | Current at Pmax | Open- Circuit Voltage | Short- Circuit Current |
| Module | MM | KG | W | V | A | V | A |
| OLPV-200W | 1200*540*70 | 20 | 200 | 18 | 10.53 | 22 | 11.37 |
| OLPV-190W | 190 | 18 | 10.15 | 22 | 10.96 |
| OLPV-180W | 180 | 18 | 9.62 | 22 | 10.38 |
| OLPV-170W | 1000*540*70 | 16 | 170 | 18 | 9.44 | 22 | 10.2 |
| OLPV-160W | 160 | 18 | 8.89 | 22 | 9.6 |
| OLPV-150W | 150 | 18 | 8.33 | 22 | 9 |
| OLPV-120W | 810*540*70 | 14 | 120 | 18 | 6.67 | 22 | 7.2 |
| OLPV-110W | 110 | 18 | 6.11 | 22 | 6.6 |
| OLPV-100W | 610*540*60 | 10 | 100 | 18 | 5.56 | 22 | 6 |
| OLPV-90W | 90 | 18 | 5 | 22 | 5.4 |
| OLPV-80W | 80 | 18 | 4.44 | 22 | 4.8 |
| OLPV-60W | 420*540*60 | 9 | 60 | 18 | 3.33 | 22 | 3.6 |
| specification |
| Nominal output | 12V/24V | |
| Max charge current | 15A | |
| Max load current | 15A | |
| Max solar panel | 270Watt/540Watt | |
| Over discharge protection | 10.8V/21.6V | Adjustable |
| Reset | 12V/24V | Adjustable |
| Over charger protection | 14.5V/29V | |
| Float charge | 13.8V/27.6V | |
| Self consumption | 2mA/4mA | |
| Size | 110*59*33mm | |
| Operating temperature | -20 to +60℃ | |
| Net weight | 110g |
How Do Solar Panels Work?
When photons hit a solar cell, they knock electrons loose from
their atoms. If conductors are attached to the positive and
negative sides of a cell, it forms an electrical circuit. When
electrons flow through such a circuit, they generate electricity.
Multiple cells make up a solar panel, and multiple panels (modules)
can be wired together to form a solar array. The more panels you
can deploy, the more energy you can expect to generate.
