Rated current: 20A
System voltage: Automatic recognition of 12 V/ 24 V
Max. Solar energy input voltage: <55V
Max. voltage at the battery end: <35V
Overvoltage protection: 17.0V; ×2/24V
Equalizing charging voltage: 14.6V; ×2/24V
Boost charging voltage : 14.4V; ×2/24V
Floating charging voltage : 13.8V; ×2/24V
Charging recovery voltage: 13.2; ×2/24V
Over-discharge recovery voltage: 12.6V; ×2/24V
Over-discharge voltage: 11.1V; ×2/24V
Equalizing charging interval: 30days
Equalizing charging time: 1H
Boost charging time: 2H
Temperature compensation: -3.0mV/℃/2V
Light control voltage : Light control on 5V, ×2/24V
Light control voltage : Light control on 6V, ×2/24V
Light control judgment time: 1minute
Operating temperature : -25℃ to +55℃
IP protection degree : IP30
| Specifcation |
| Related power | 100W |
| Vop | 17.9V |
| Working current (Iop) | 5.59A |
| Output Tolerance | ±3% |
| Temperate coefficient of Isc | (010+/- 0.01 )%/ ℃ |
| Temperate coefficient of Voc | - (0.38 +/-0.01 )%/ ℃ |
| Temperate coefficient of power Voc | -0.47%/℃ |
| Temperature range | -40℃to +80℃ |
| Frame and leg | Heavy duty aluminum |
| SLA Battery Voltage | 12V |
| Dimensions (L x W x H)mm | 690*510*73mm(27.3*20.16*2.9in) |
| Weight (kgs) | 11.9kgs(26.25lbs) |
| Notes | |
1.Unfold the solar panel, expose the solar panel to
south(inclination angle from 15-30 degree),
2.Connect the appliance to the load terminal of the connector
3.Conncet the male weather pack connector with alligator clips to
the female weather pack connector from the controller
4. Clamp red and black alligator clips to positive and negative
ends of the battery respectively. |
|
Where there is sunlight ,there is power supply!

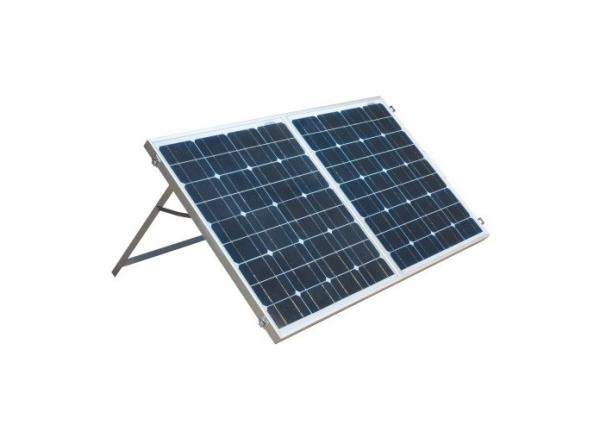

The foldable solar panel kit with integrated charge controller can
charge a battery directly and also a usb output to charge mobile
phones, tablets and digital camera. This kit bring mobile solar
power for RV, caravans, motor homes, trucks, golf car, boats as
well as all the outdoor activities..

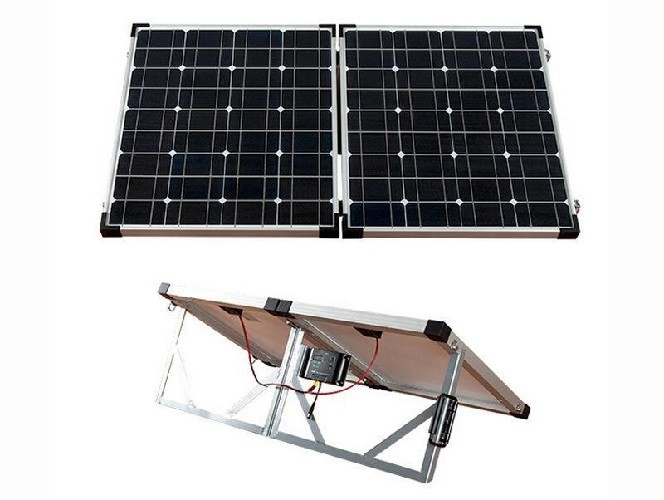

The foldable solar panel kit with high efficiency solar cell which
can generate maximum power in the fix area and aluminum frame and
supporting bracket, easy to install to absorb the sunlight, just
plug and play.
Company Profile:
We are a professional manufacturer specialized in Solar Panels with
more than 7 years of experience. Our main products include: Mono
and Poly Solar Panel, Solar power system, Solar charger controller,
Inverters, Solar LED lights, and so on.
What we can provide: High quality and very competitive price, fast
delivery and best service!
A trustable and reliable supplier for your business. We have
already exported our products around the world includes Russian,
Middle East, South American, Southeast Asia and so on.
For any details, please don't hesitate to contact me any time!
FAQ
• Are you manufacturer or trading company?
--- we are a manufacturer & system integrator since Jan 2008.
• What kind of certification do you have?
--- Power from 3W to 315W with TUV,IEC61215/IEC61730,CEC,CE,PID,ISO
• What is the warranty of solar panels?
--- 5-year warranty on material and workmanship,90% power output in
10 years,20% in 25 years
• Can you quote me the best price?
---We need more information about your demands, such as the
power/material/Qty/etc, then We can
suggest the suitable type and quote the best price for you.
• How do I get solar panel from ollin and Where can I get further
information?
--- Please visit our website and send us email or call us.
